Plume modeling refers to a simulation of where carbon dioxide may spread in the event of a leak or rupture. It can be used to understand potential risks. The provided models are not worst case scenario.

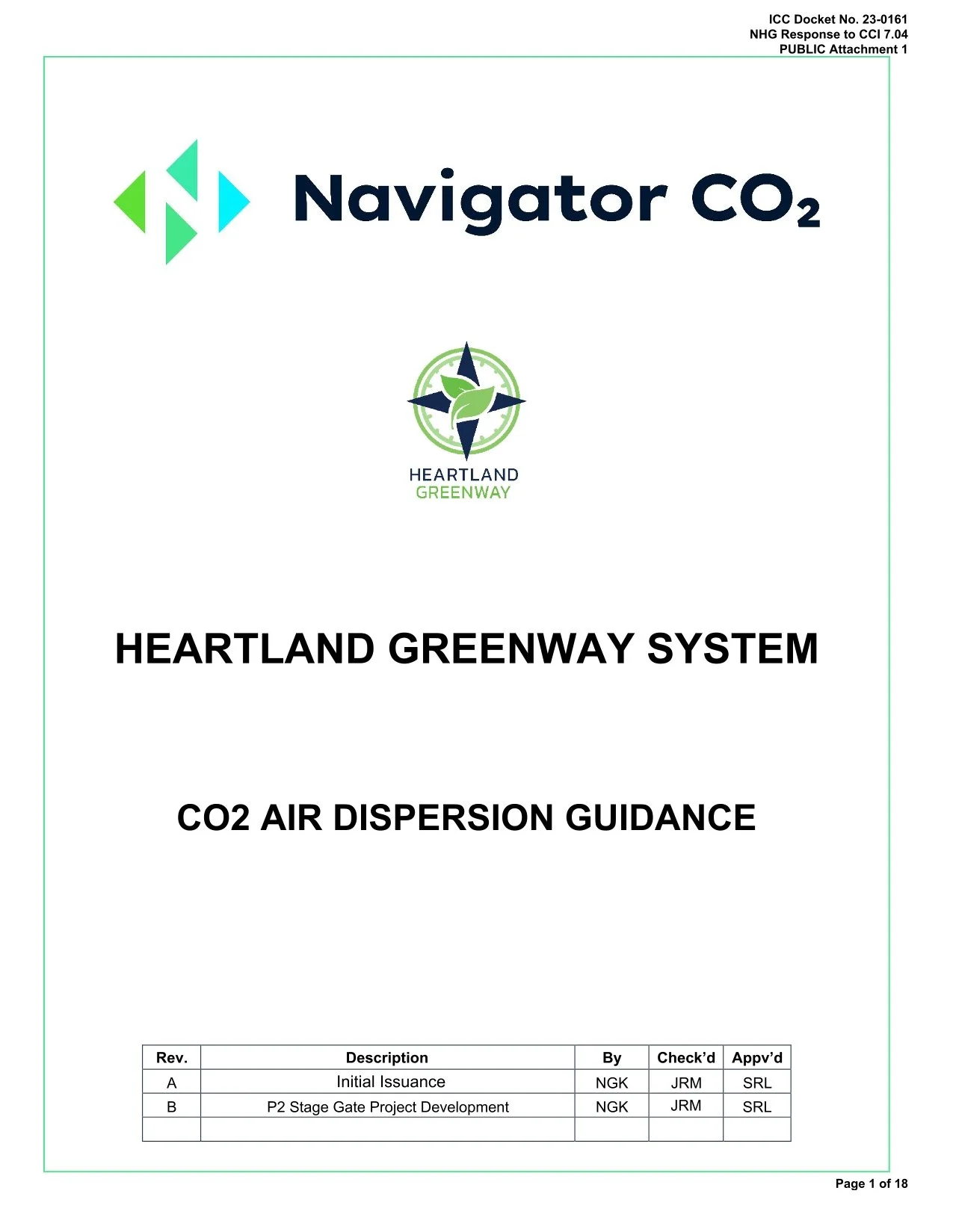

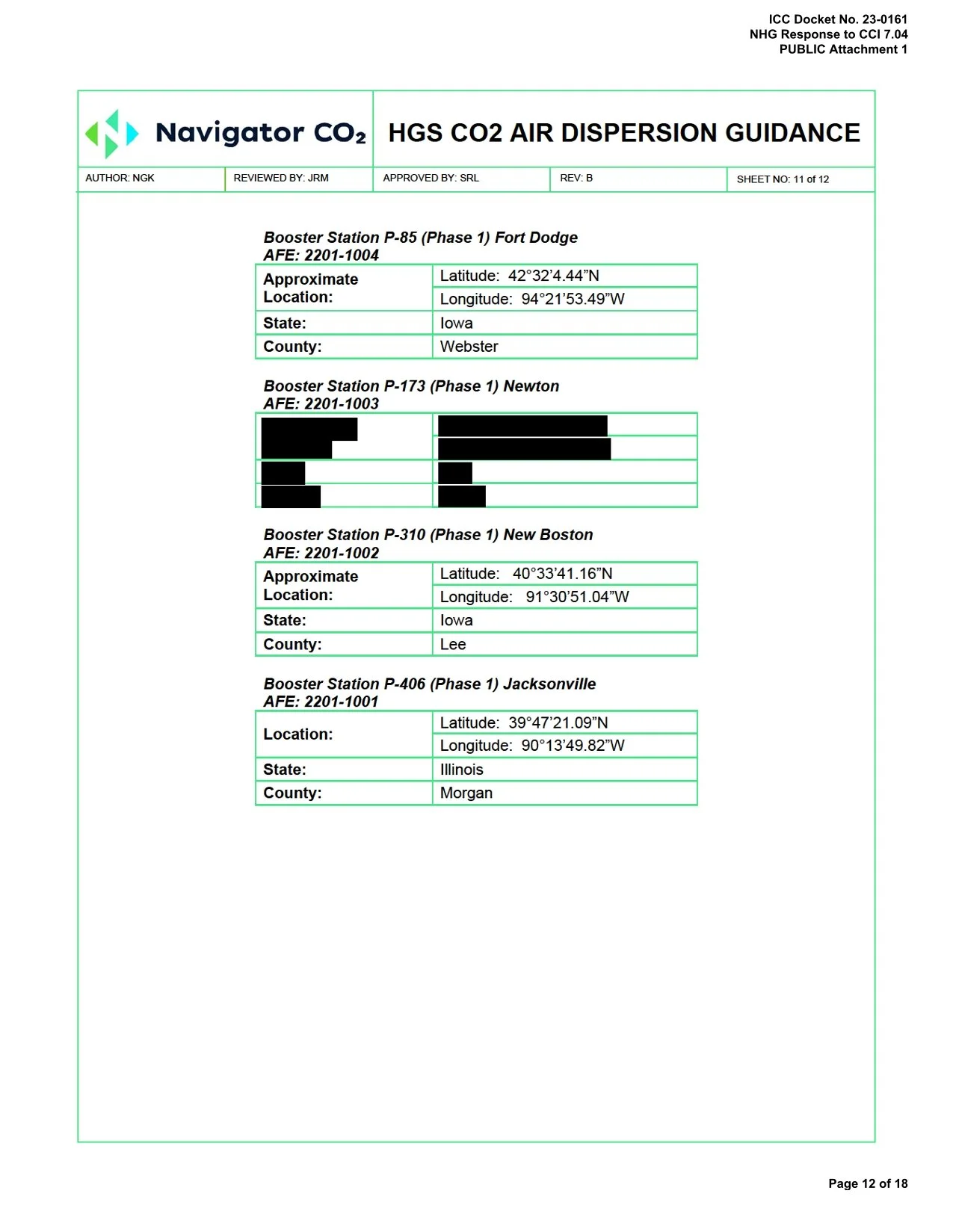

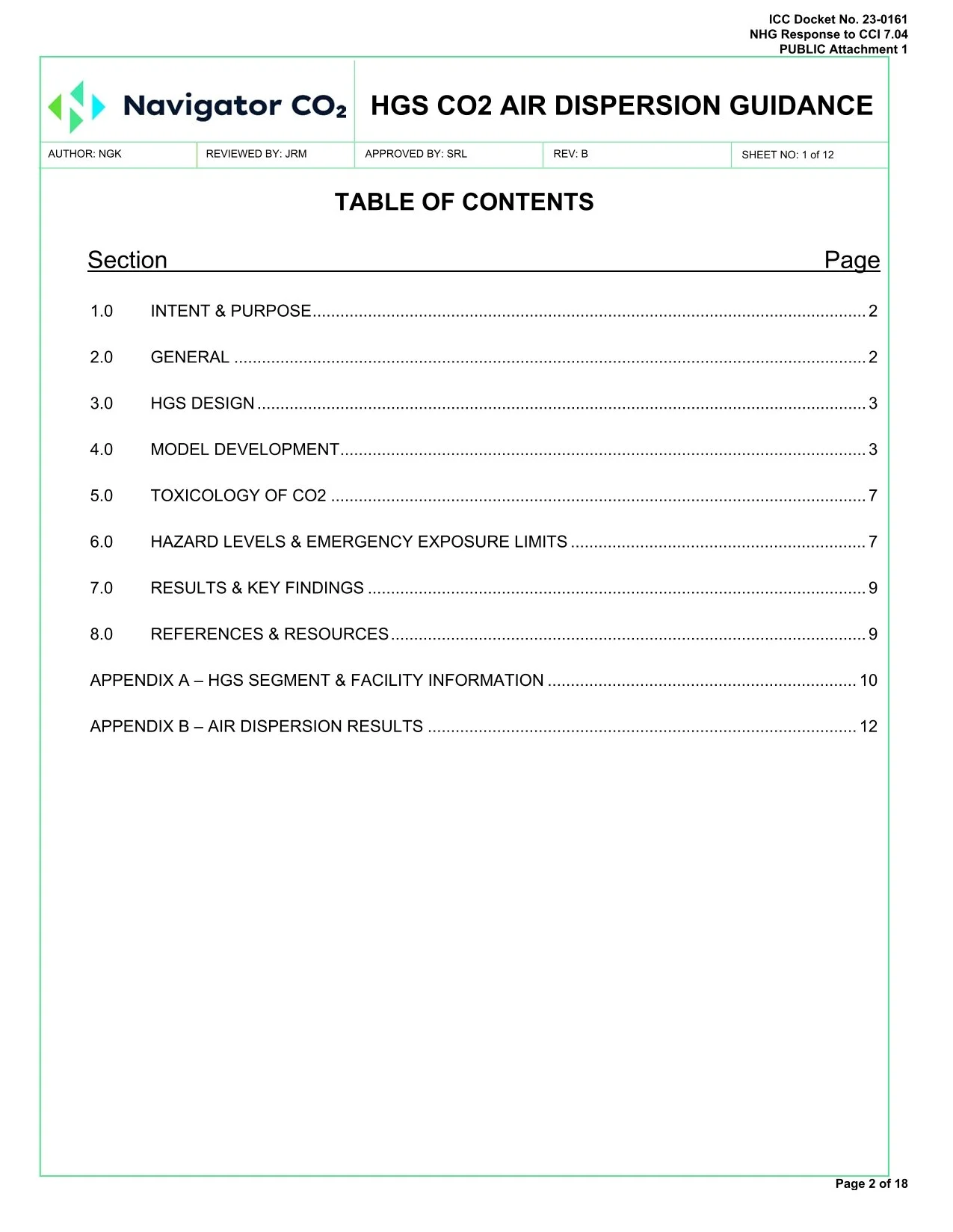

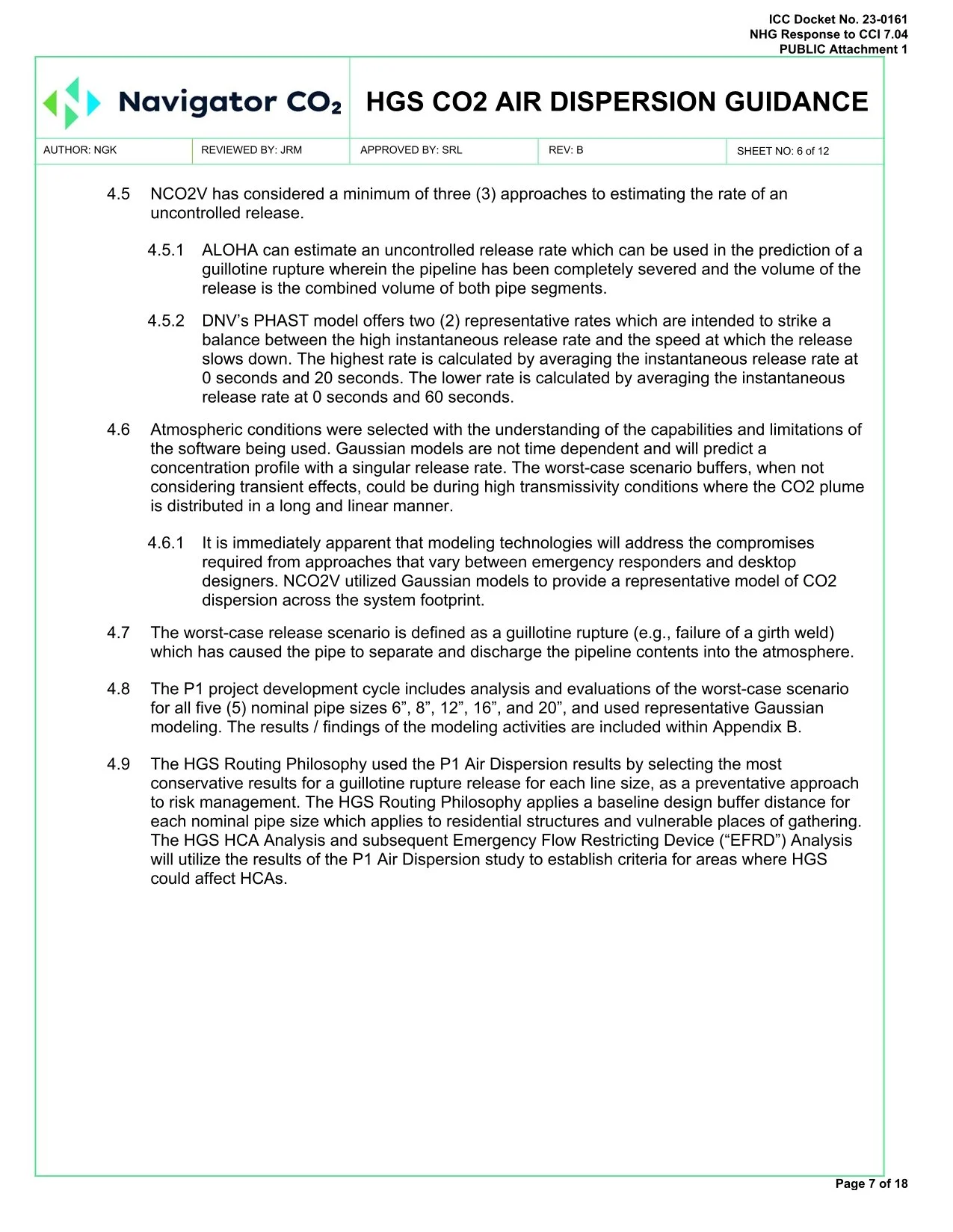

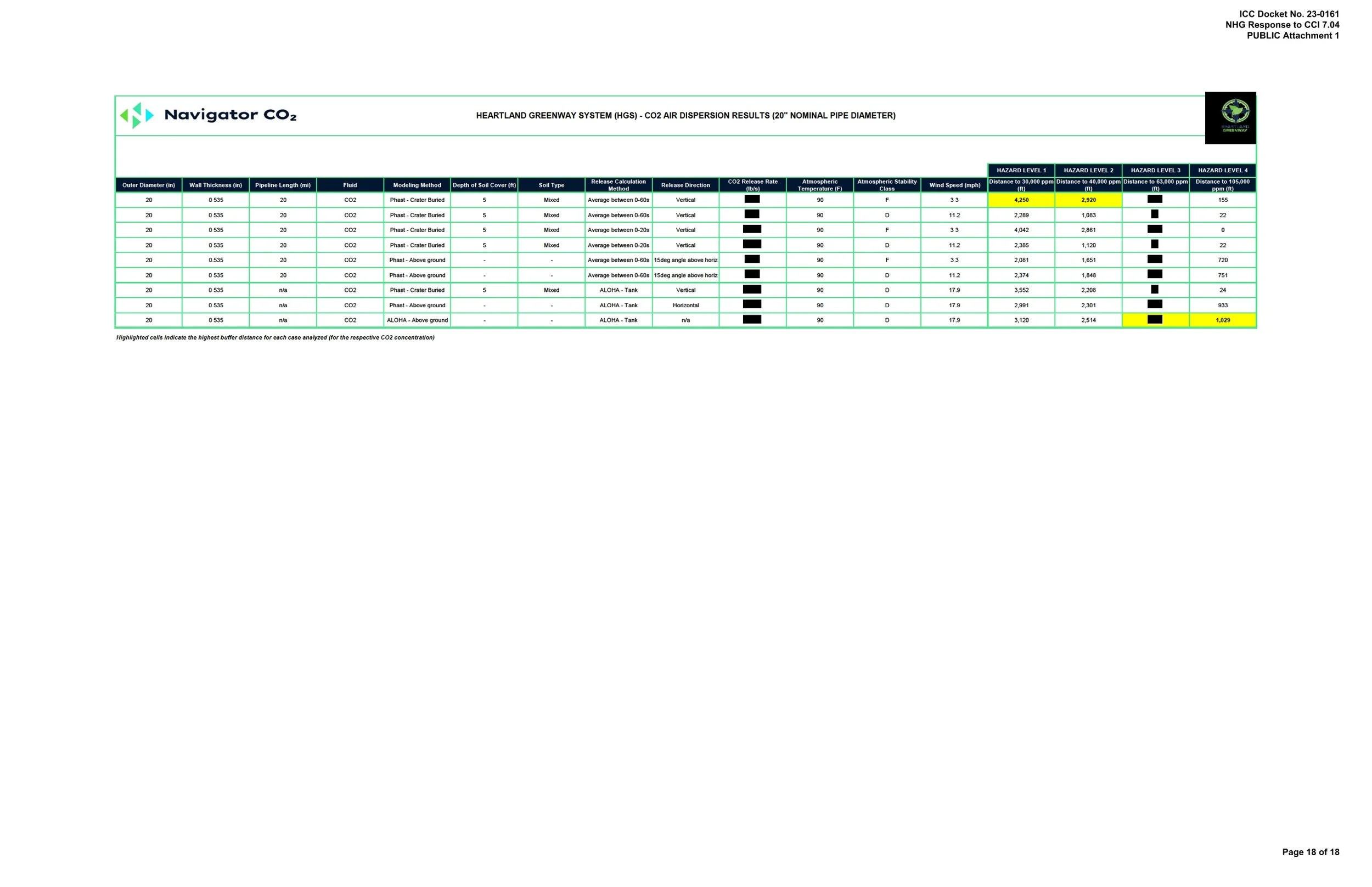

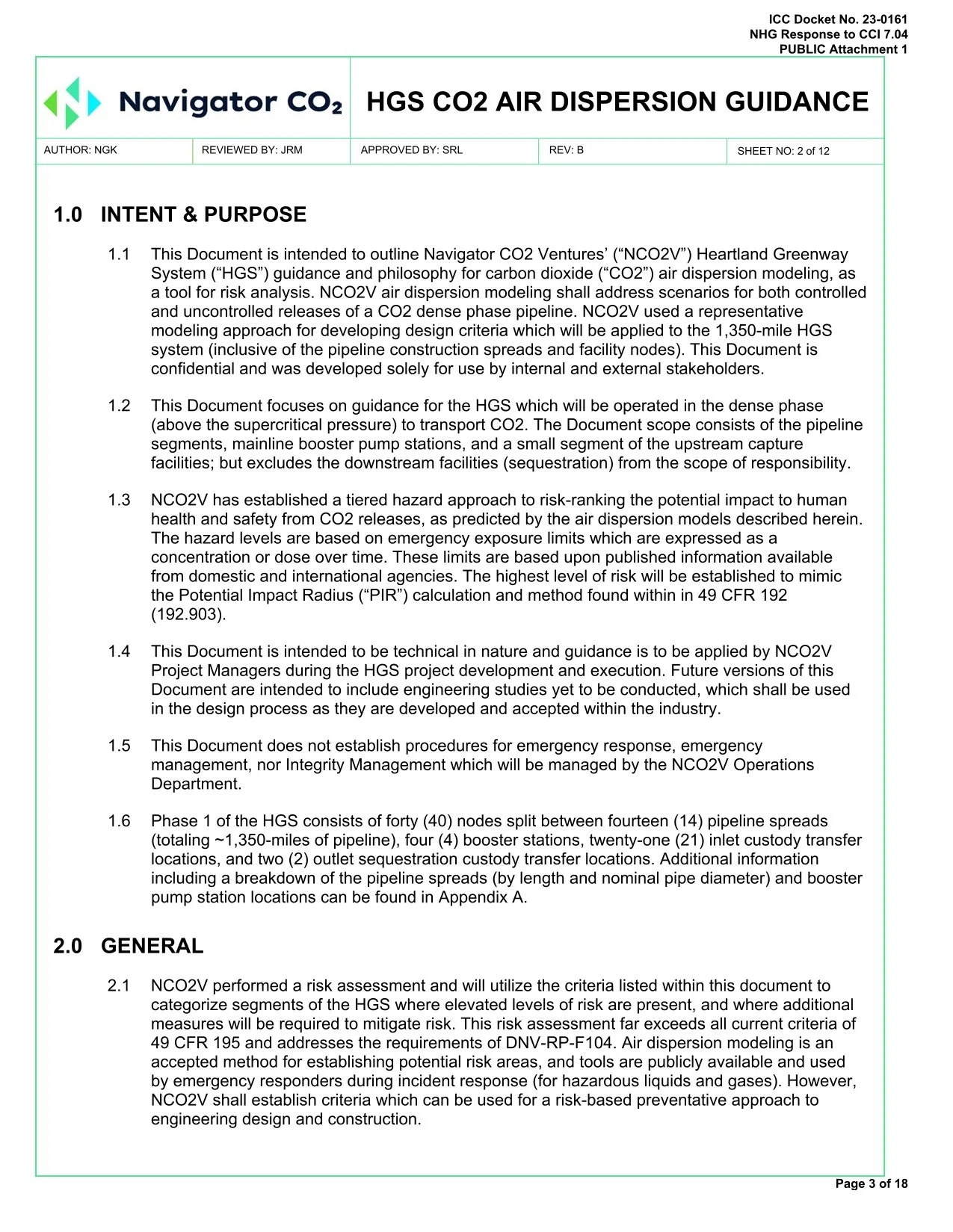

Navigator Plume Model Data PUBLIC Attach. 1[91]-1.jpg

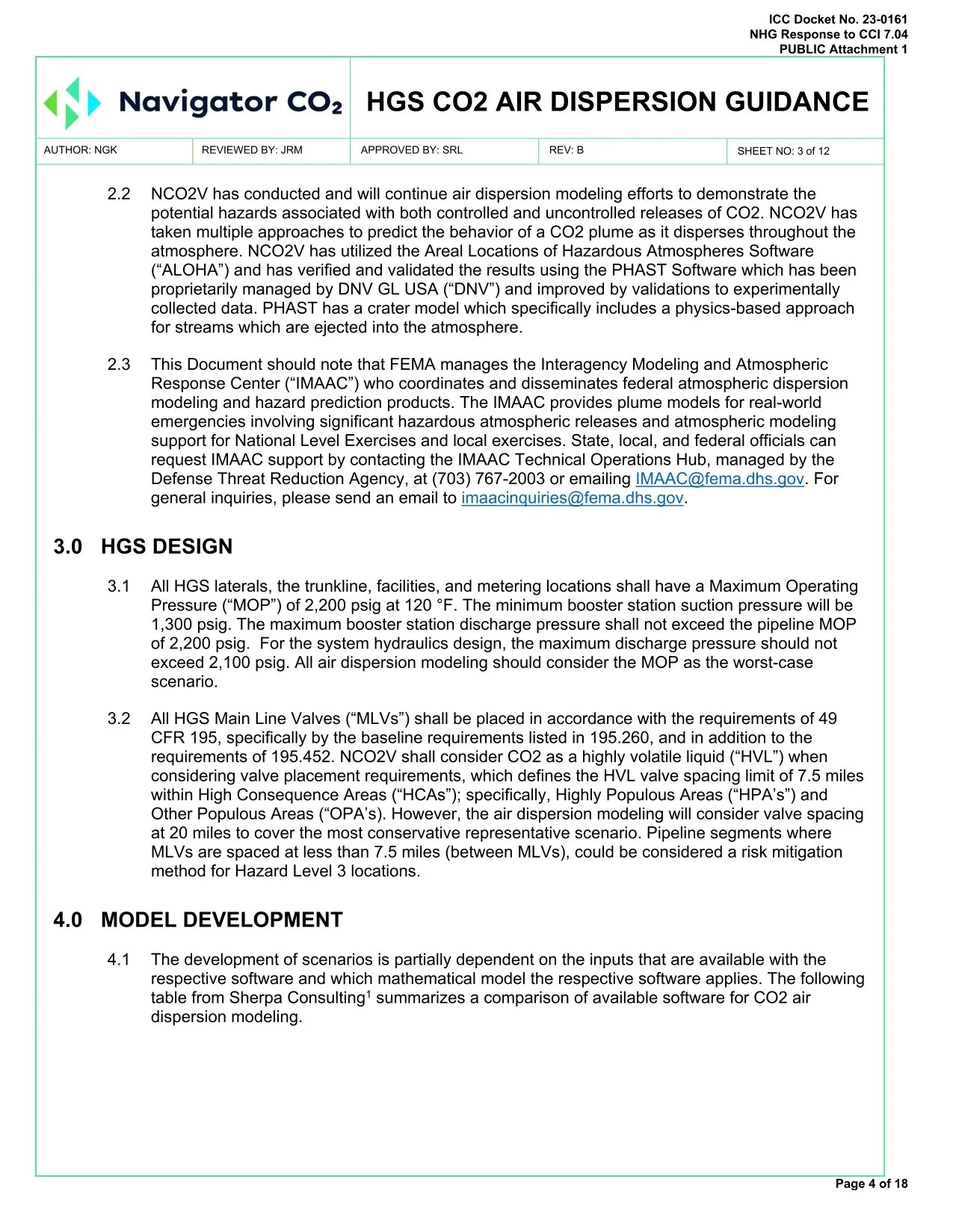

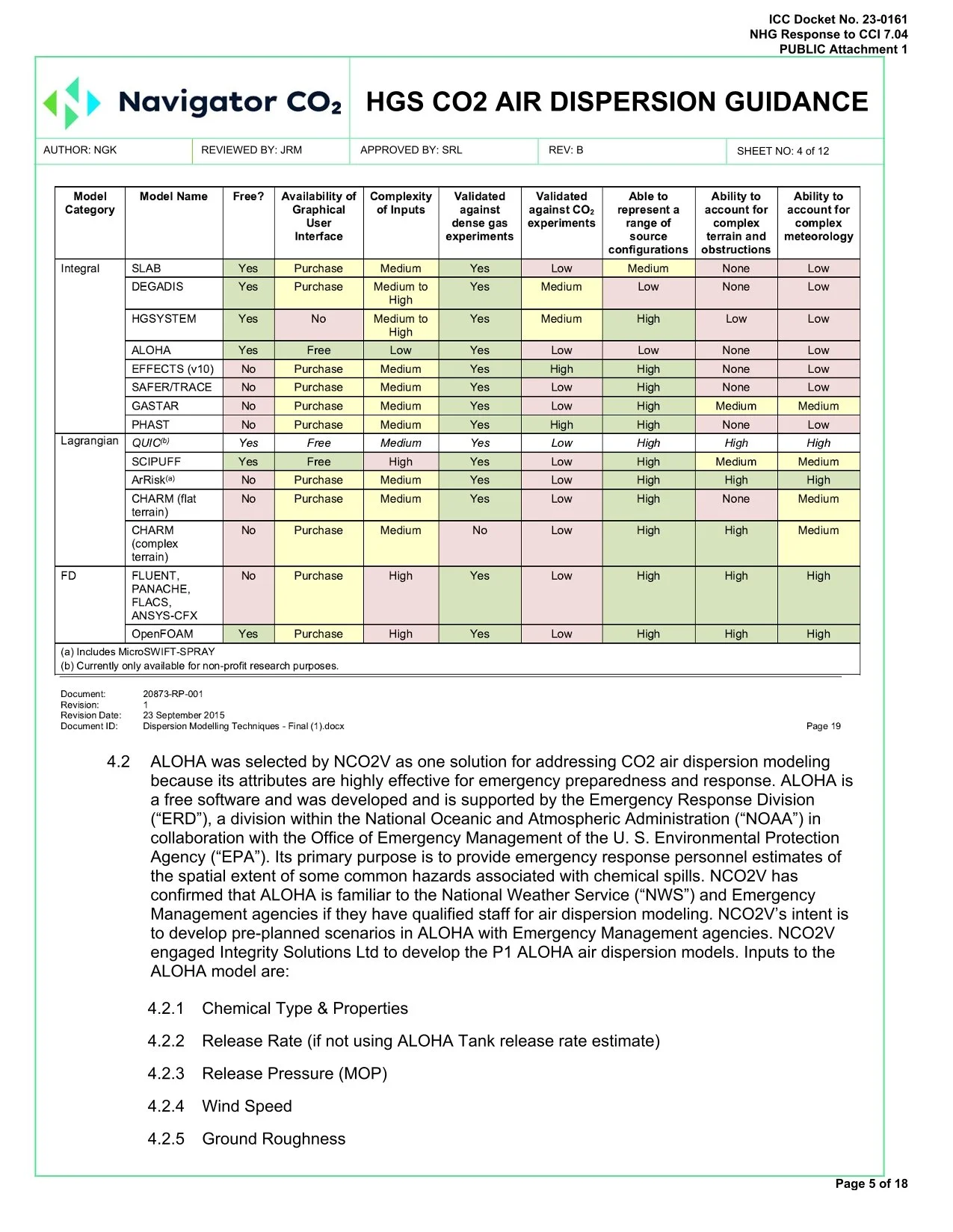

Navigator Plume Model Data PUBLIC Attach. 1[91]-2.jpg

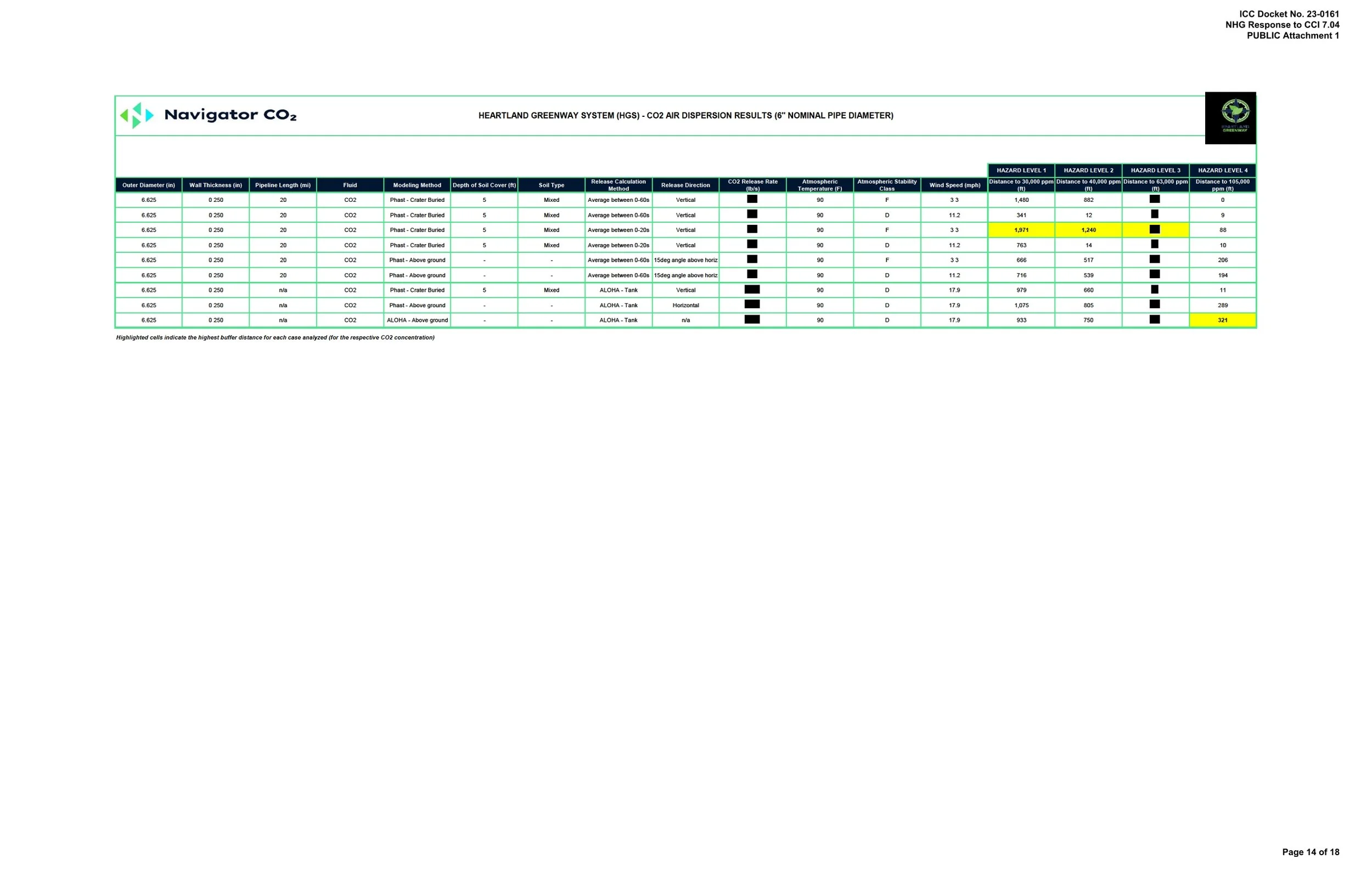

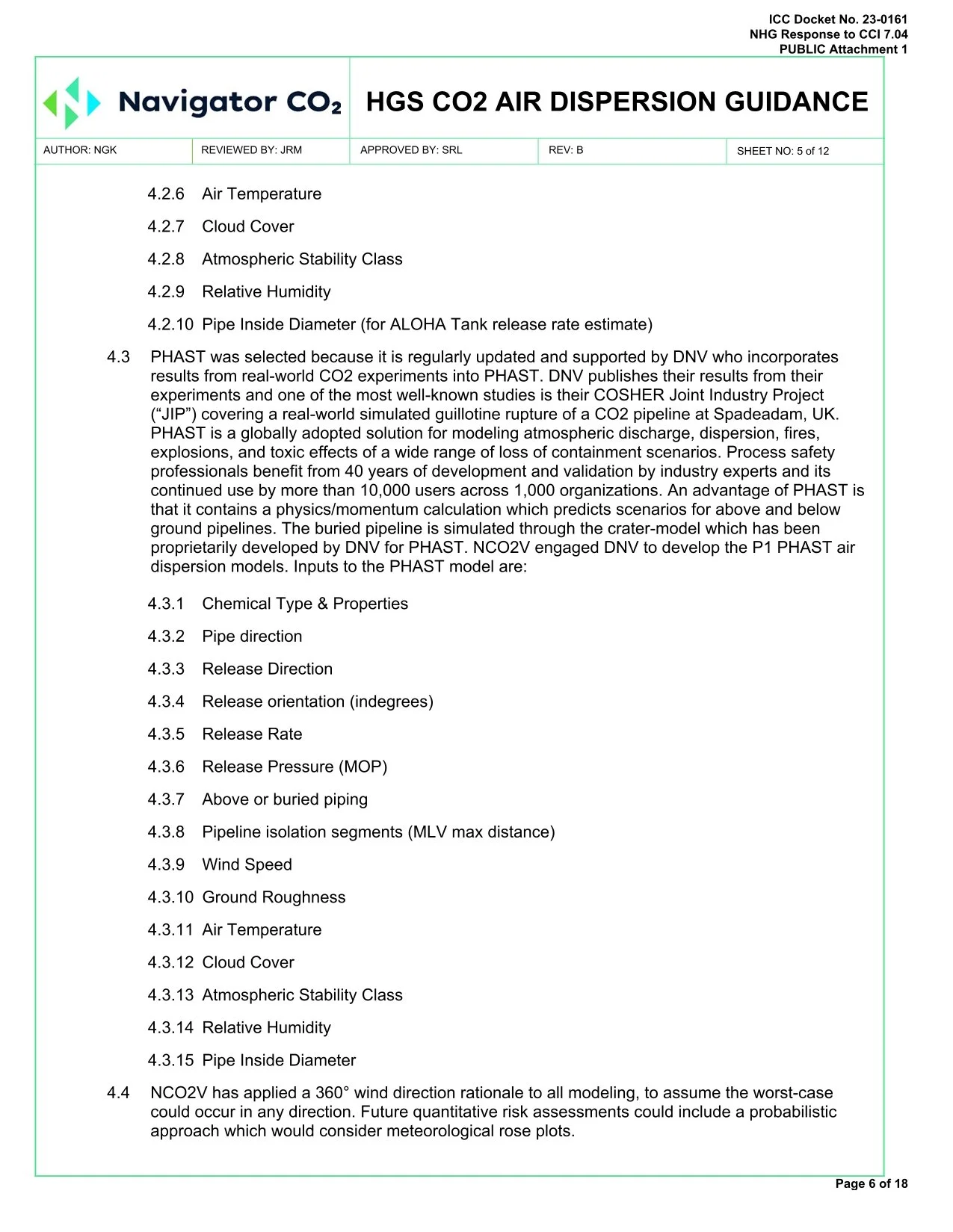

Navigator Plume Model Data PUBLIC Attach. 1[91]-3.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-4.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-5.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-6.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-7.jpg

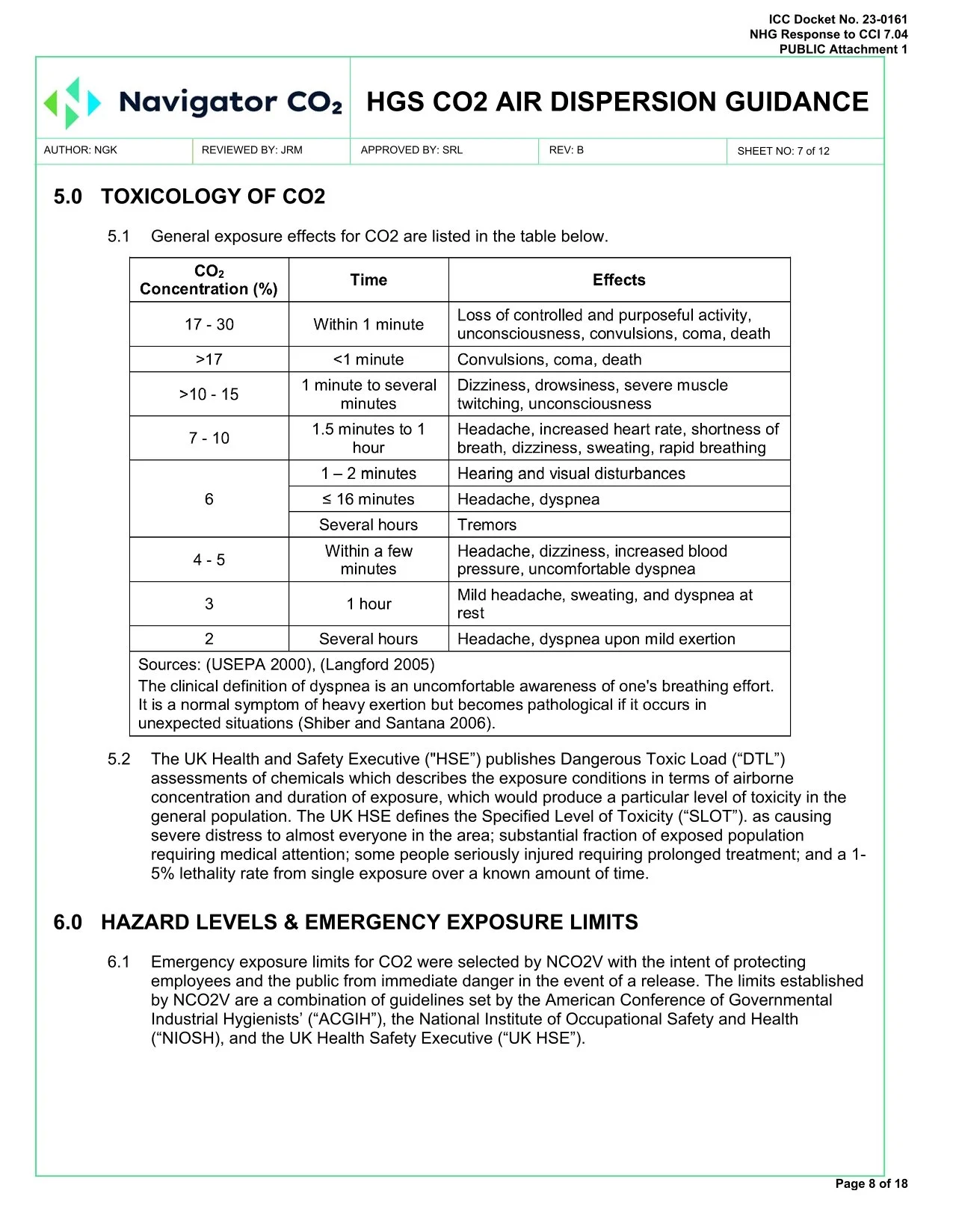

Navigator Plume Model Data PUBLIC Attach. 1[91]-8.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-9.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-10.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-11.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-12.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-13.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-14.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-15.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-16.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-17.jpg
Navigator Plume Model Data PUBLIC Attach. 1[91]-18.jpg
